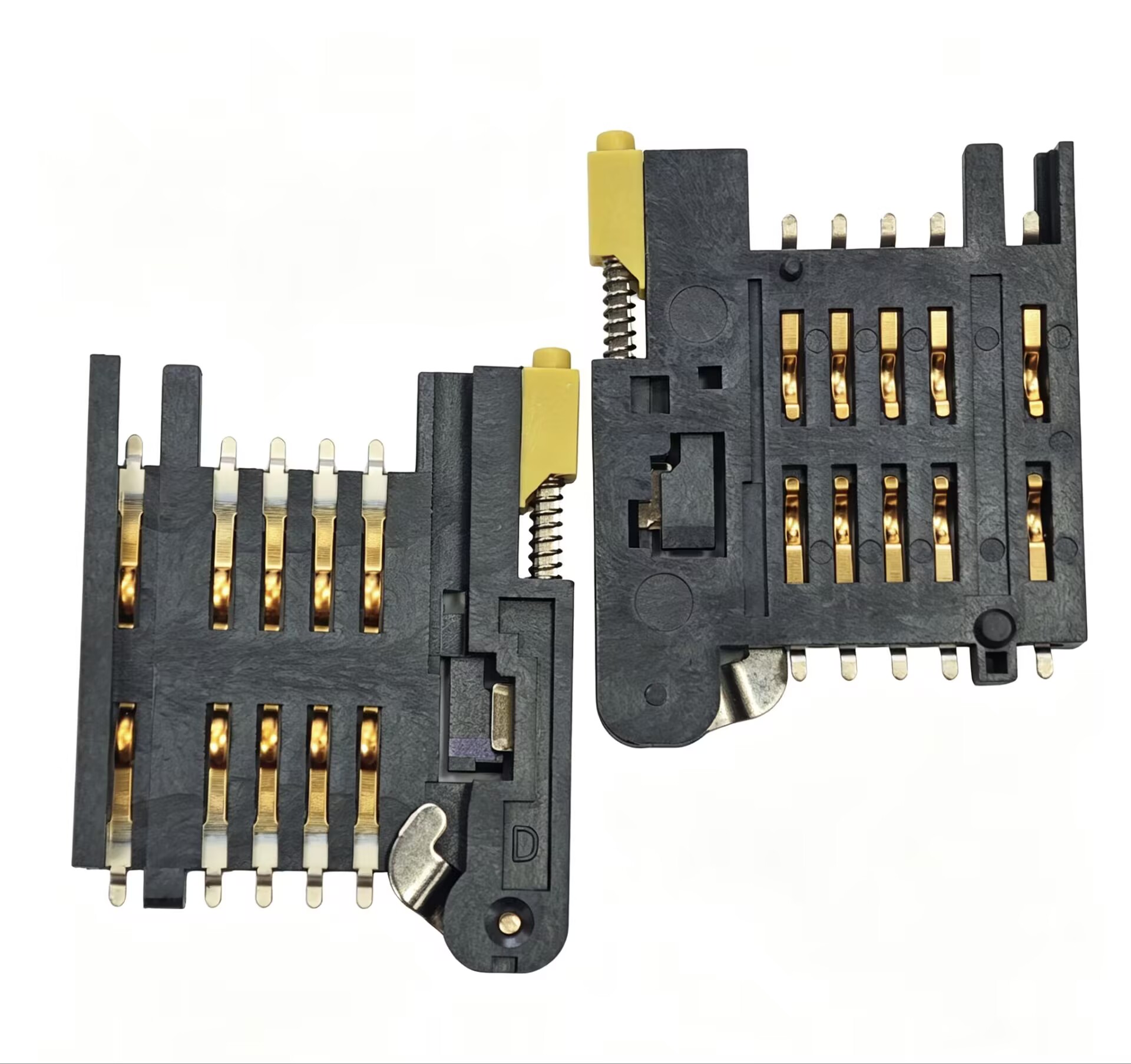

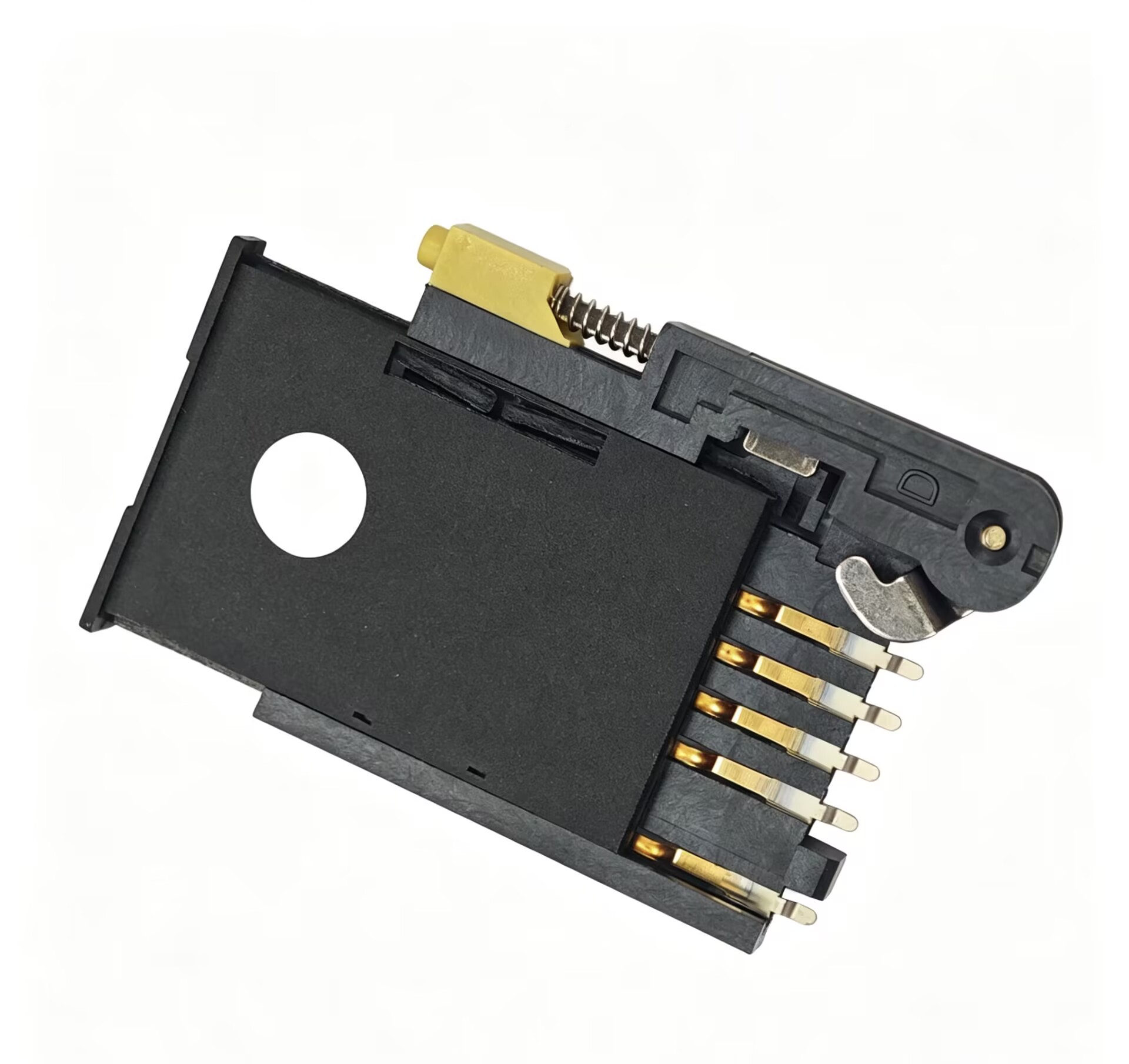

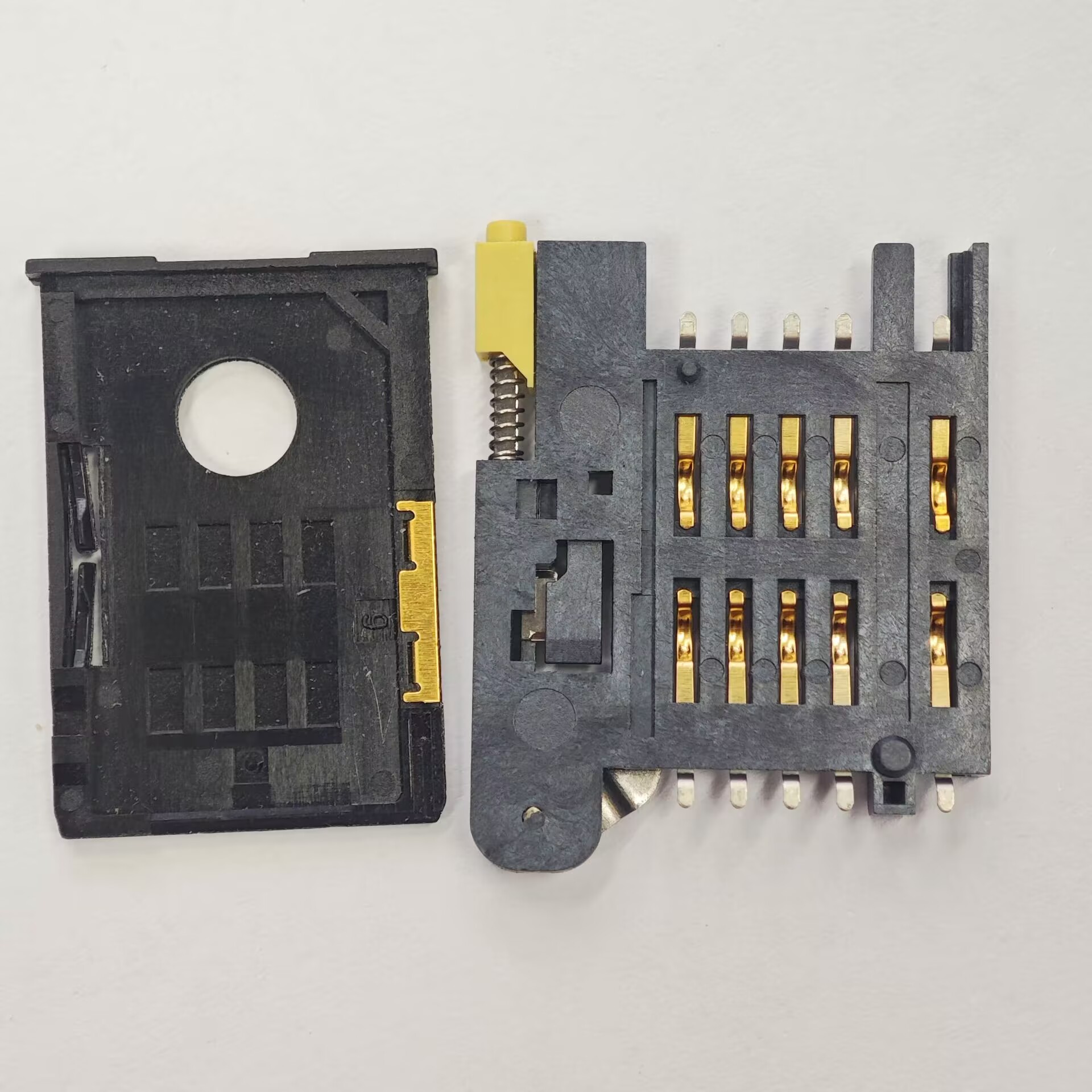

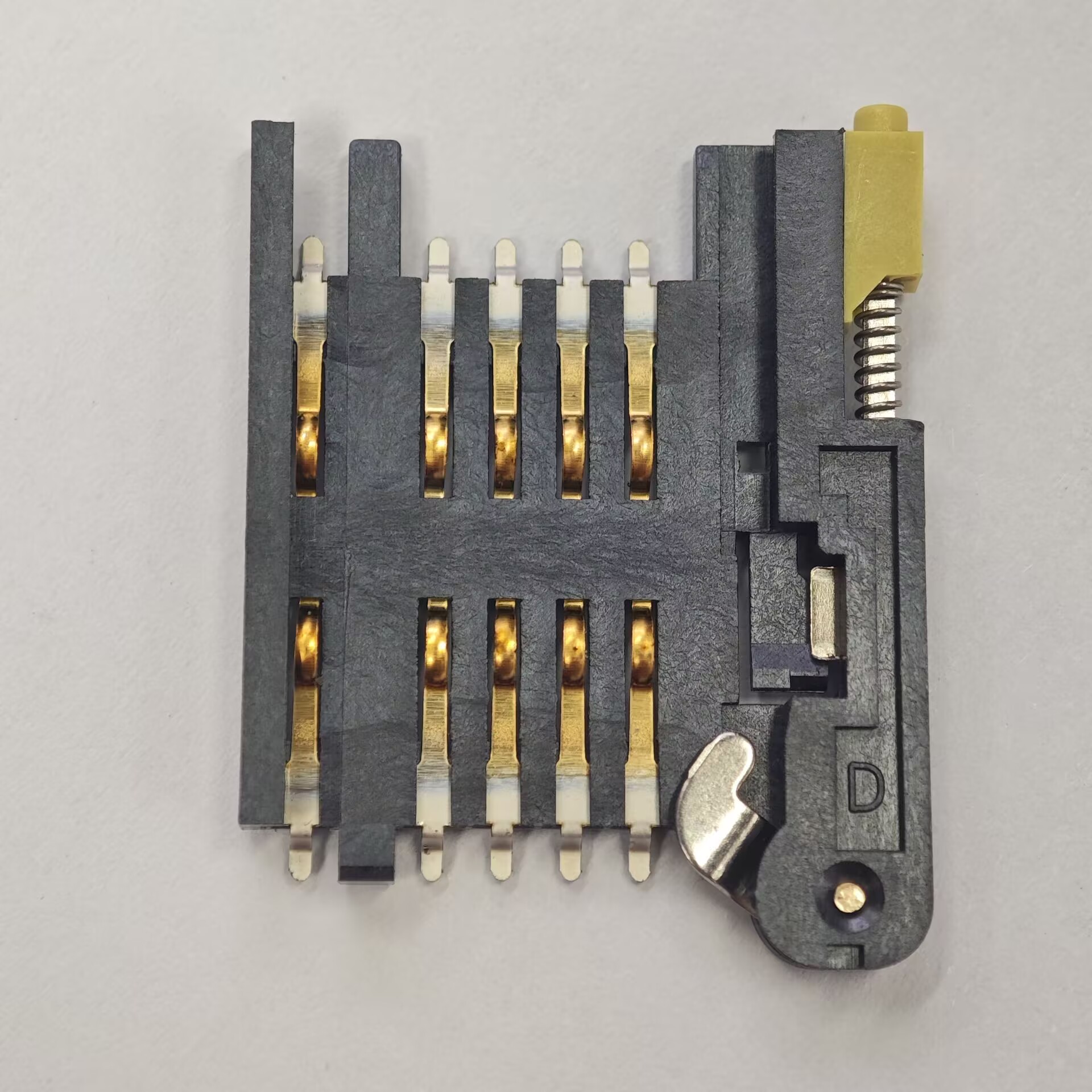

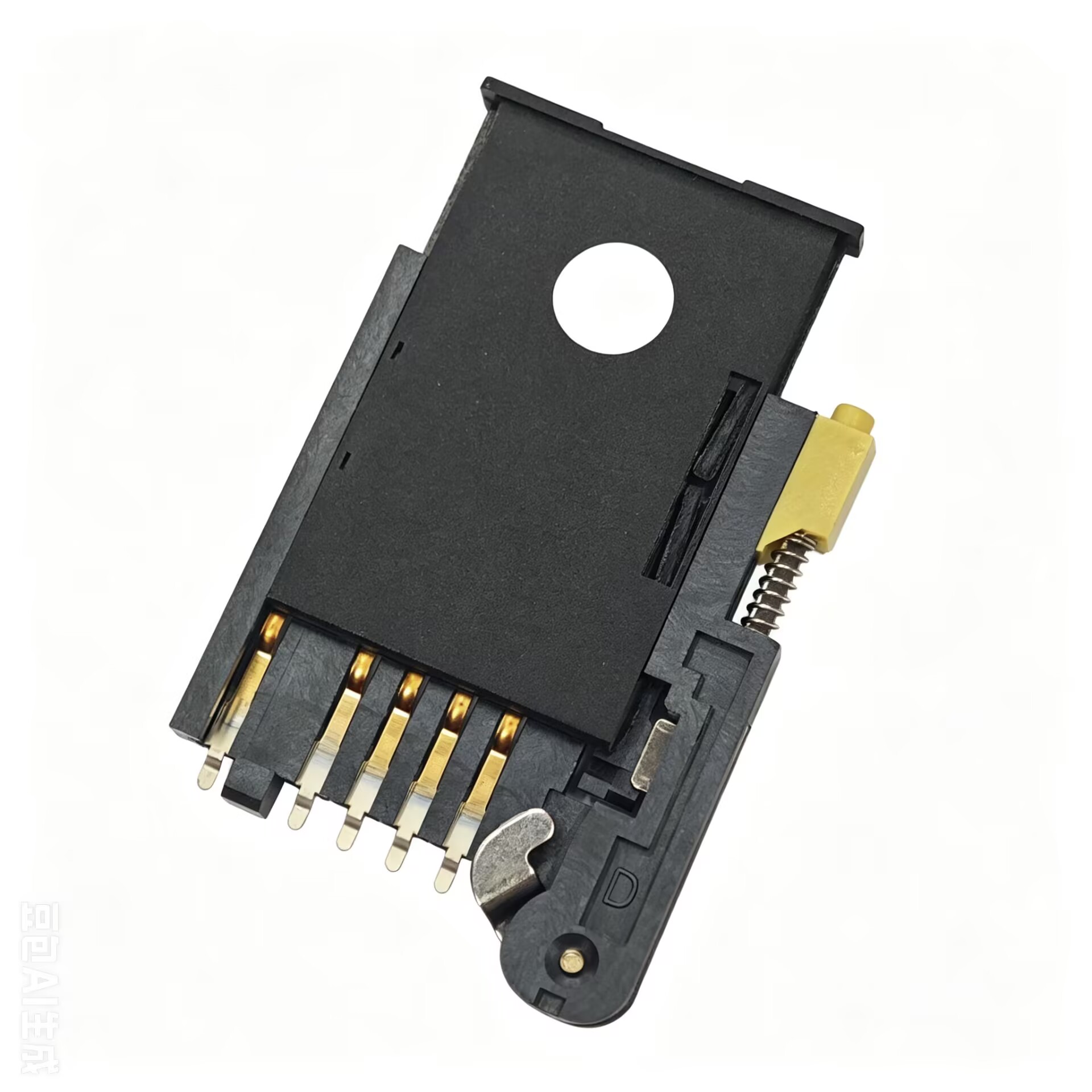

JLJ-SIM200-82PY SIM with lever(trey) 10P. H3.0mm
Product name:SIM card connector push push type With positioning post 10P(8+2),wih lever /tray.direct replacement for Molex 091228-3001 Part Number: JLJ-SIM200-82PY Specification:Plastic: black high temperature UL94V-0;
Specifications
| L*W*H mm | 33*25*3.0 | Durability | 5000 cycles | Gold Plated | 15U” |
| Pins | 8+2 | Type | MINI SIM | Package | 0.5K/2K |
| Post | Y | Insertion | push push | Card Holder | Y |
| Molex P/N | 91228-3001 | open/close | open | Rating | ★★★★★ |

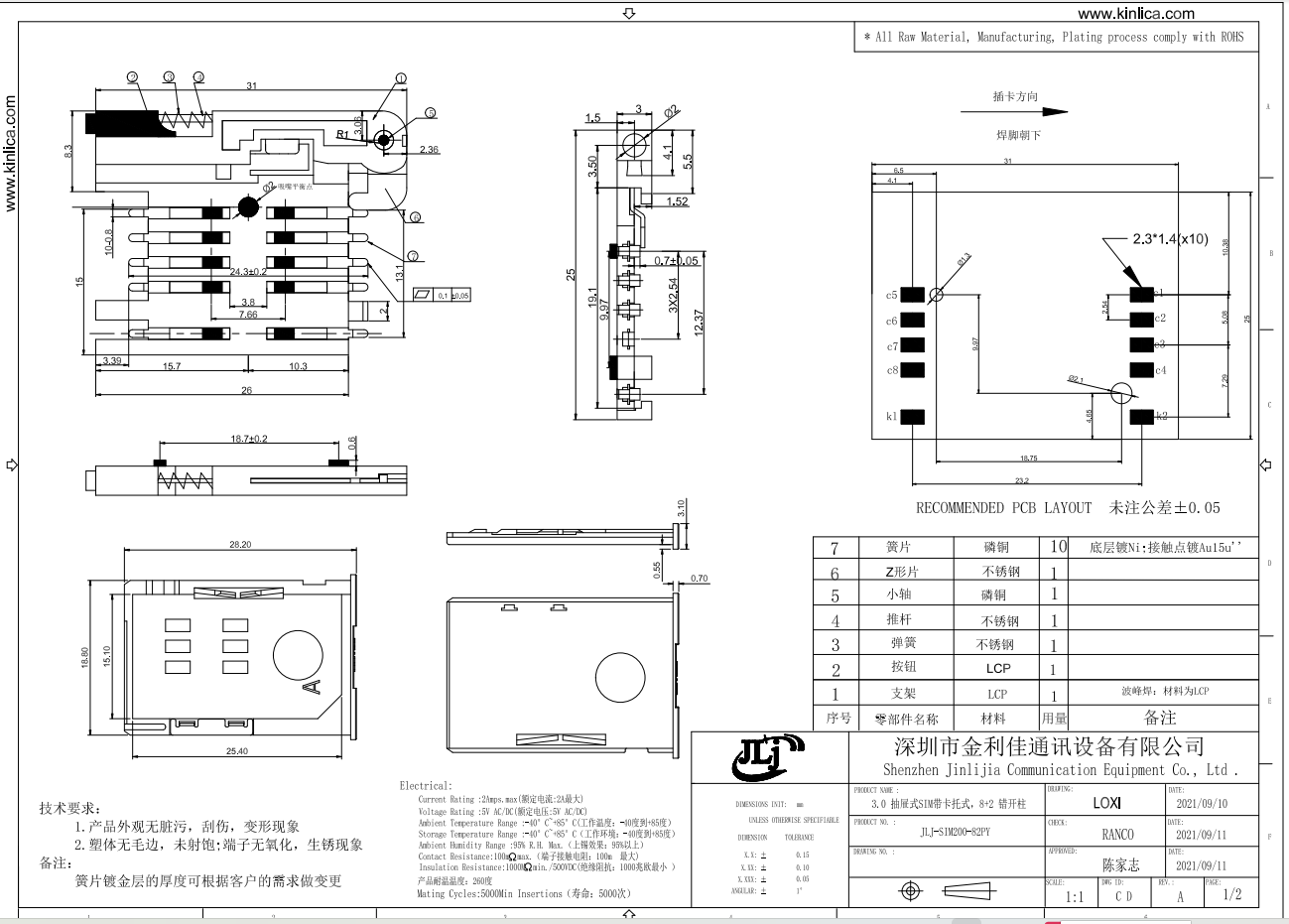

Drawing:
