Recommended Products WL-TF125-D2S

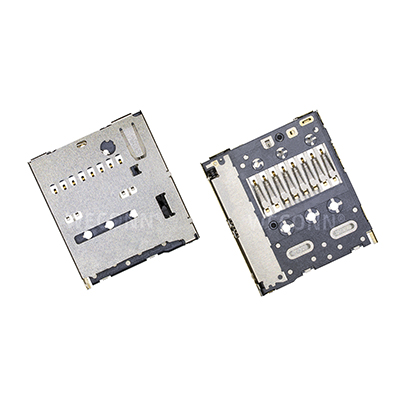

Recently, our company has newly launched the WL-TF125-D2S TF card connector, which is a fully compatible replacement for the JAE ST11S008V4H (R2000) model.

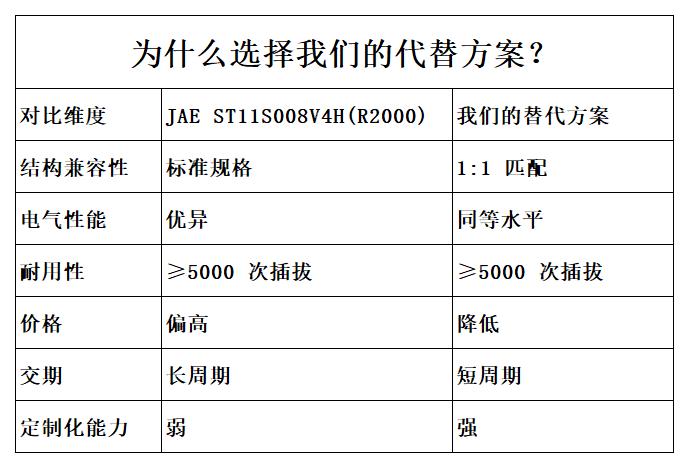

The WL-TF125-D2S is precisely matched with the original model in specifications, performance and structure, while offering superior advantages in delivery capability and pricing.



JAE ST11S008V4H (R2000) has established itself as a classic TF card connector model due to its reliable performance. However, it can no longer adequately address supply chain volatility and cost control requirements.
In response, we have adopted the same push-push self-locking drawer structure as the JAE ST11S008V4H (R2000), with highly consistent insertion/extraction feel and self-locking retention force.
It supports direct replacement without requiring modifications to existing device molds, ensuring stable and secure supply chain continuity.


With a durability of ≥5,000 mating cycles, it meets the same lifespan standard as the original model. Its gold-plated contacts resist wear and corrosion, ensuring stable electrical connections over long-term use.
The operating temperature range covers -40°C to 85°C, making it suitable for temperature and humidity variations in consumer electronics, automotive and industrial applications, with performance comparable to imported counterparts.
To obtain the WL-TF125-D2S, a drop-in replacement for the JAE ST11S008V4H (R2000), please contact us today.
