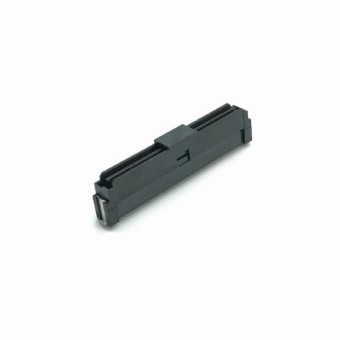

WL-BTB327-MXXXXXXXXXX0X

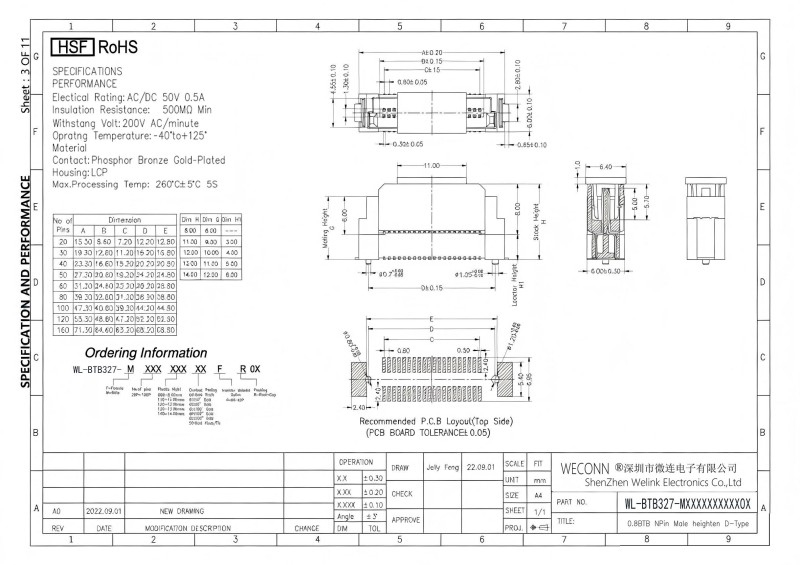

Technical parameters:

1.Electical Rating:AC/DC 50V 0.5A

2.Insulation Resistance:500MQ Min

3.Withstang Volt:200V AC/minute

4.Opratng Temperature:-40'to+125°

5.Contact:Phosphor Bronze Gold-Plated

6.Housing:LCP Max.Processing

7.Temp: 260°C±5°C 5S

Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage
