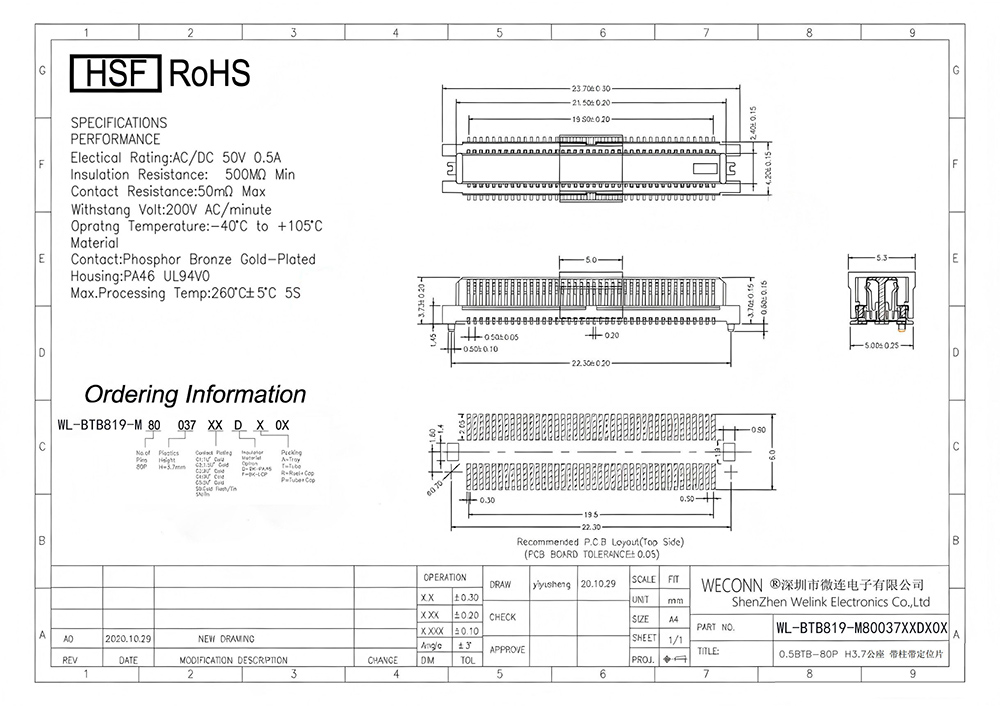

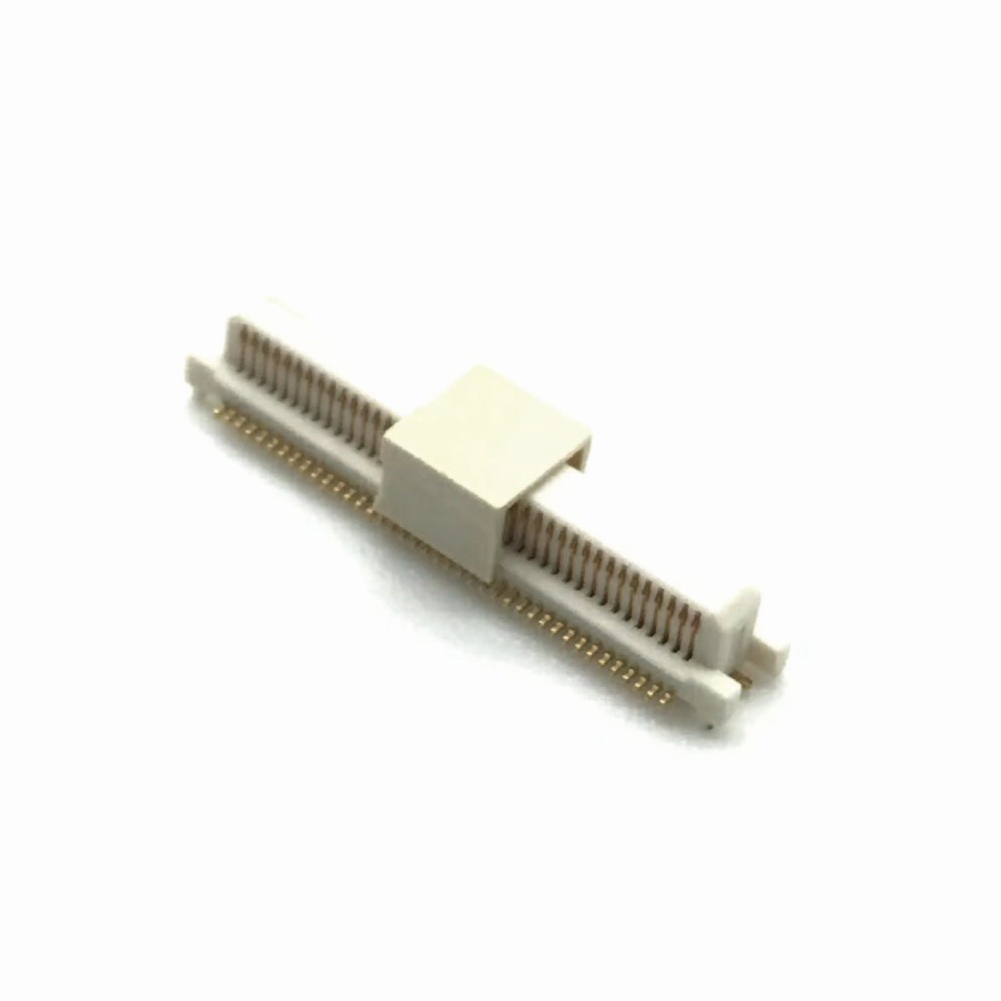

WL-BTB819-M80037XXDX0X

Technical parameters:

1.Rating:AC/DC 50V 0.5AInsulation

2.Resistance:500MQMinContact

3.Resistance:50mQ MaxWithstang

4.Volt:200V AC/minuteOpratngTemperature:-40°C to +105°CMaterial

5.Contact:Phosphor Bronze Gold-Plated

6.Housing:PA46 UL94VOMax.Processing

7.Temp:260°C+ 5°C 5S

Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage
