WL-USBC105-326

Technical parameters:
1. Rated current: 5.0A AC/DC
2. Rated voltage: 5.0V AC/DC
3. Operating temperature: -25°C ~ +85°C
4. Storage temperature: -25°C ~ +85°C
5. Contact Impedance: 10m ohms max.
6. Withstand voltage: 100V AC / 1 minute
7. Insulation resistance: 100M ohms min
8. RoHS compliant
9. Stable and superior performance

Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. Inspection of this product Process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - > Cutting filament ribbons-->Assembly shell-->Electrical test-->Flatness test-->Positiveity test-->Appearance test-->FQC test-->into storage

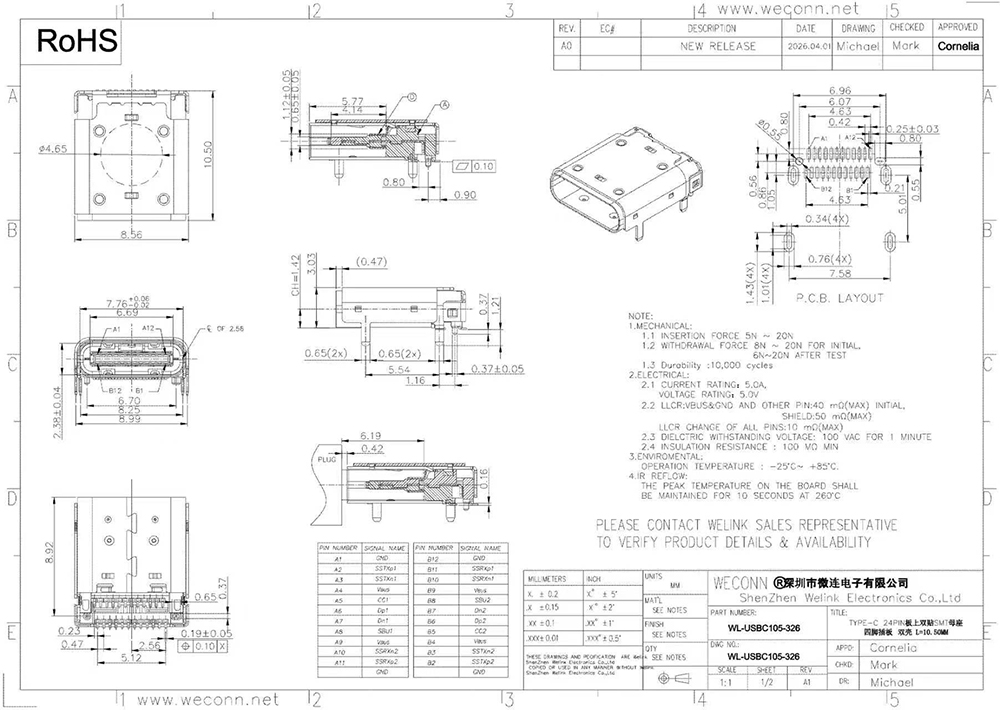

Drawing:
